Bottom Outlet Valves

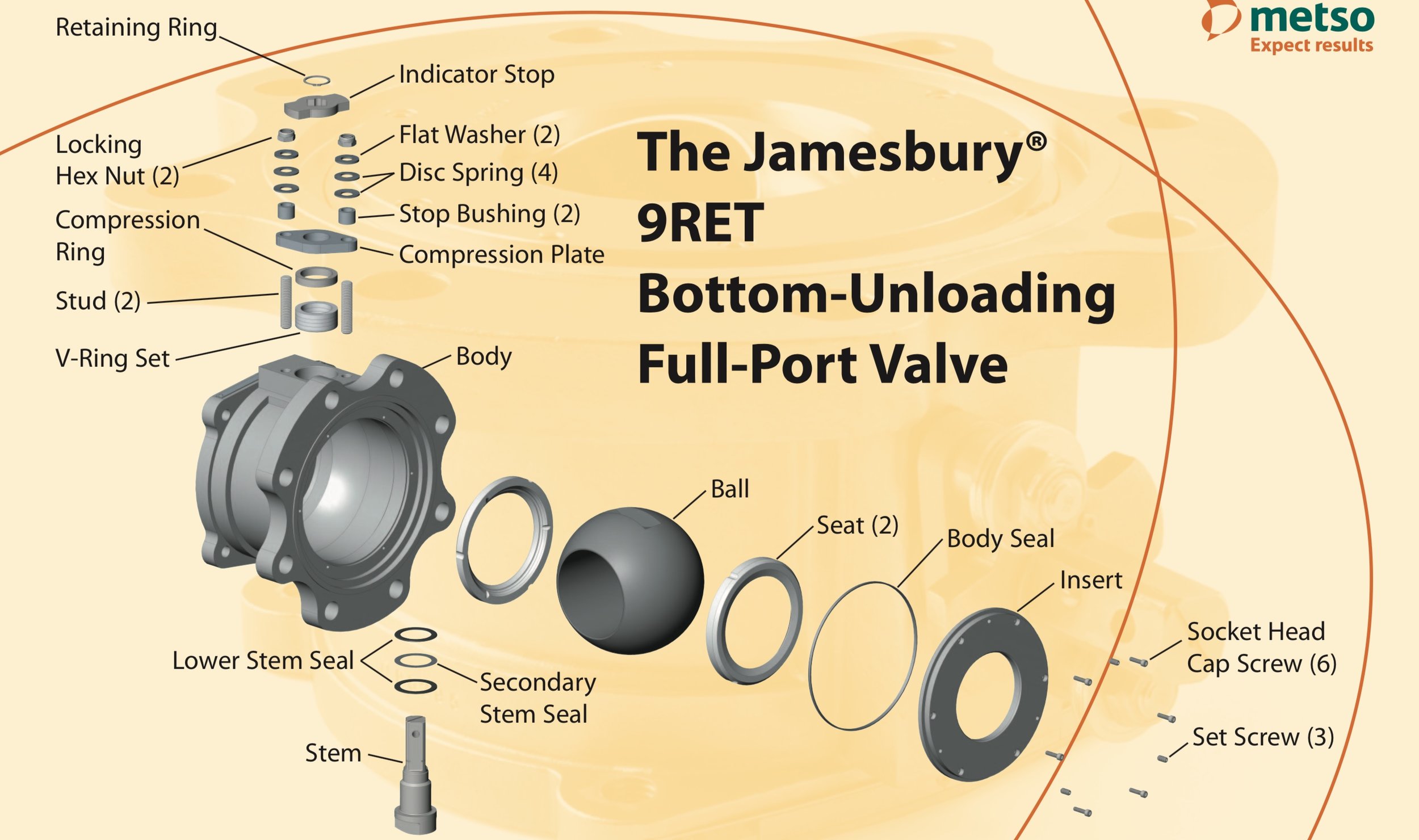

jamesbury 9ret

Features

•        Full port, Steam Jacket available

•        All seat options

•        Fire Tite Design to API 607

•        Live loaded stem packing

•        Molten Sulfur

Specifications

•        AAR Number              E172109

•        Size range                   4” / DN 100

•        Materials                    Carbon and stainless body



jamesbury 9rel

Features

•        Full port, Steam Jacket available

•        Low profile

•        Fire Tite Design to API 607

•        Live loaded stem packing

•        Molten Sulfur

Specifications

•        AAR Number              E172109

•        Size range                   4” / DN 100

•        Materials                    Carbon and stainless body



jamesbury 5reb3

Features

•        4” Reduced port, Steam Jacket available

•        Low profile

•        12.75” bolt circle

•        All seat options

•        Fire Tite Design to API 607

Specifications

•        AAR Number              E079027

•        Size range                   4” / DN 10

•        Materials                    Carbon and stainless body

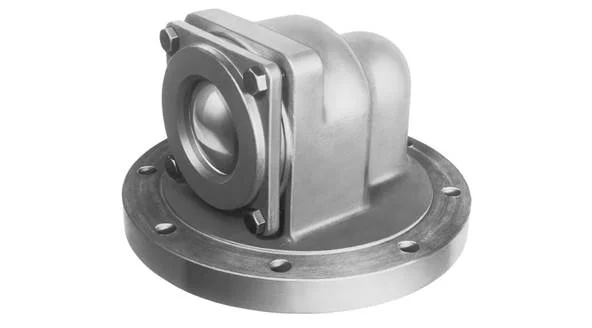

jamesbury 6rib3

Features

•        Internal Full Port BOV

•        Extreme low profile

•        22 and 36 material

•        TT and MT seat material

•        Fire Tite Design to API 607

Specifications

•        AAR Number              E079026

•        Size range                   4” / DN 100

•        Materials                    Carbon and stainless body

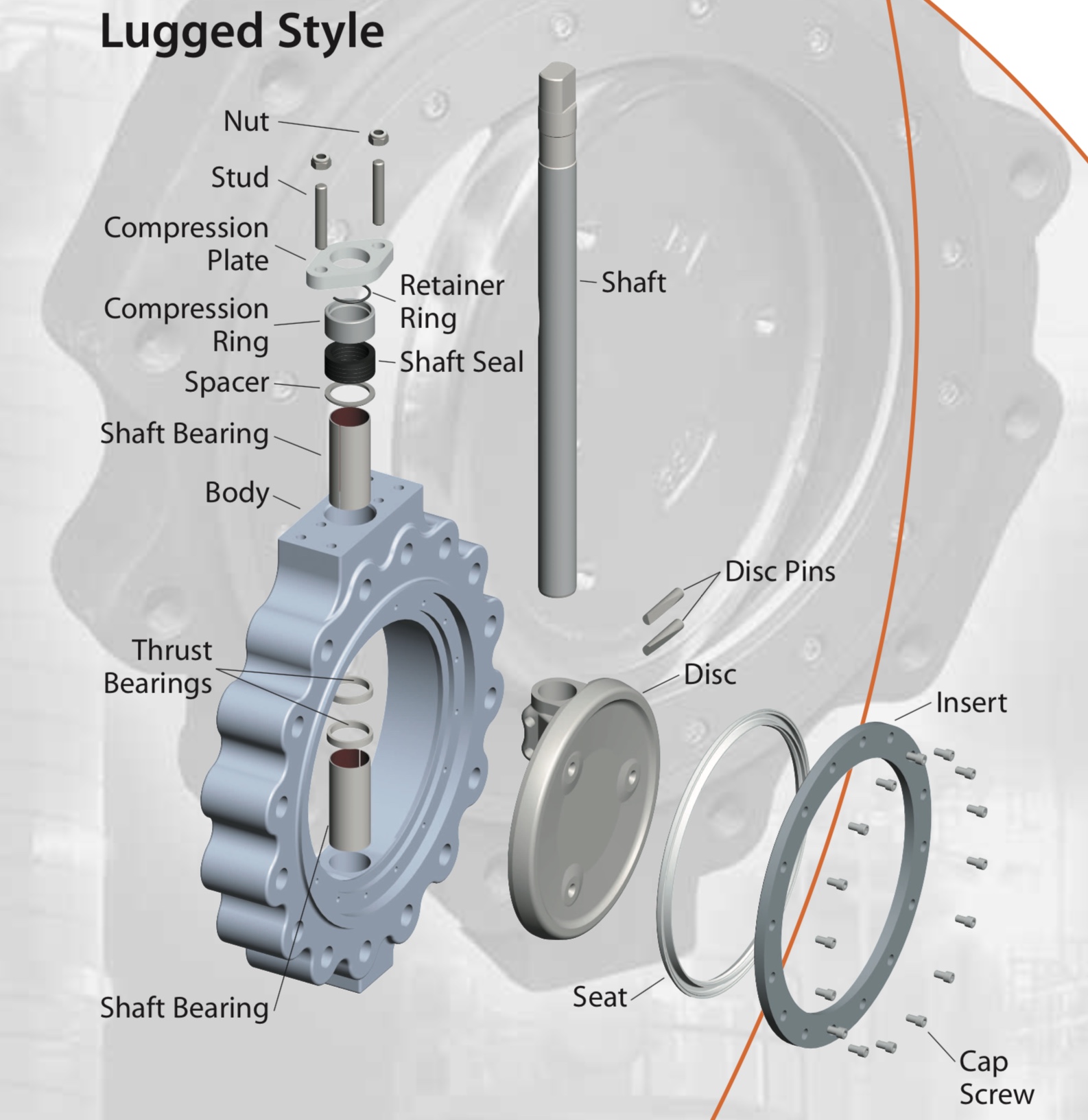

jamesbury wsrr & wsrf

Features

•        Ultra low profile

•        WSRF Fire Tite

•        WSRR Food Service

•        Special polished disc

Specifications

•        AAR Number              E089015

•        Size range                   6” / DN 200

•        Materials                    stainless body
