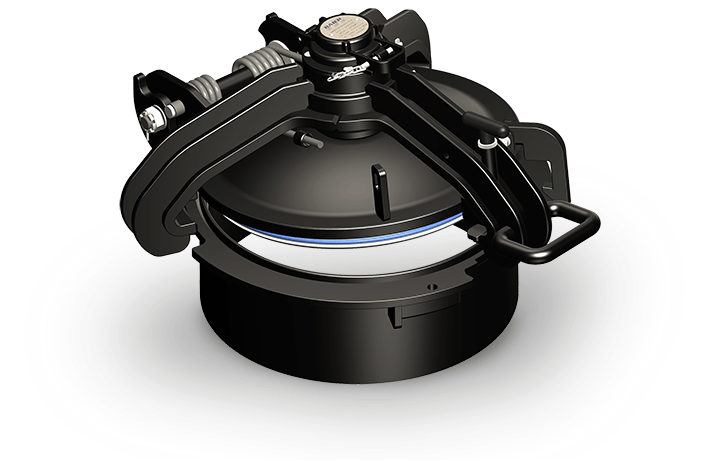

TransQuip's New Manway

Designed and engineered to completely eliminate Non Accident Releases (NARs) as well as reduce gasket and labor costs by 95%. This innovative single bolt, metal-to-metal closure employs a universally chemical compatible encapsulated O-ring that sits on a retaining groove within shear ring of the cover. This system is approved for use with impact wrenches, has no torque requirements takes less than 2 minutes to open and close. The O-Ring is never compressed and field testing to date has seen O-Rings last over 1 year (over 12 turns) and still not need replacing.

Features

•        Eliminates NARs

•        Superior 360° No-Compression Sealing

•        Universal Seal/ Chemical Compatibility

•        No Torque Requirements (metal-to-metal interface)

•        Takes <1 minute to open/ close

•        Enormous costs savings

•        2 Stage Venting process

•        Safe & Secure

IMO

Specifications

•        AAR Number              E152106

•        Size range                   20" Manway/ 3 nozzle lengths

•        Materials                    Carbon Steel & Stainless Steel
